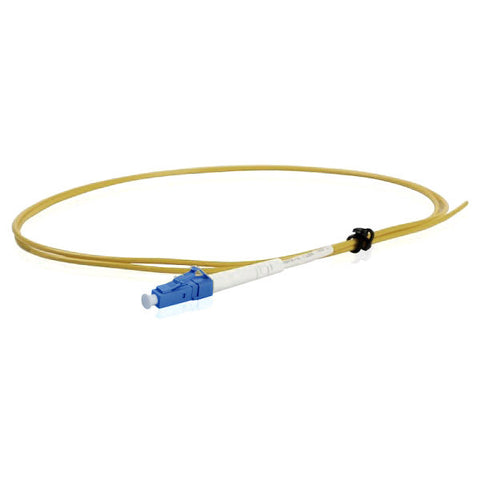

LC/UPC OS2 Simplex Single-Mode Pigtail
28PS2Q0015T-YL6Q | 1.5M LC/UPC OS1 OS2 Simplex Single-Mode Pigtail - AT&T
 |
Average ETA for Additional Units | Contact Us |
 |
Product Datasheet | Download |
AT&T FiberLine Fibre Optic Pigtails provide complete and state-of-the-art fibre cabling solutions for all needs of enterprise customers.
This LC/UPC OS2 Single-Mode Fiber Optic Pigtail is Yellow in colour and suitable for AT&T FiberLine Multi-Core Cable, Patch Panels and Couplers.
Specifications:
- Simplex
- Colour: Yellow
- Connector: LC/UPC
- OS2 9/125 Micron (Backwards compatible with OS1)
- Single Mode
- Buffer type: 900µ tight flame retardant LS0H coating
- Strength elements: Served aramid and glass yarn
- Mini-cable jacket material: Flame retardant LS0H compound
Standard & EU Directives Conformance:
- Relevant sections of ANSI/TIA-568-C.3
- Relevant sections of ISO/IEC 11801
- Relevant sections of EN 50173
- Relevant sections of ANSI/TIA/EIA-604 (FOCIS)
- Relevant sections of IEC 60874
- Relevant sections of IEC 61753
- Relevant sections of IEC 61754
- IEC 60332-1 flame test
- IEC 60754 & IEC 61034
- EU Directive 2011/65/EU (RoHS-2)
Mechanical Properties
- Short term bend radius: 20xOD mm
- Long term bend radius: 10xOD mm
- Operating temperature: -20 to +80C
- Length: 1.5m
- Jacket colour: Yellow
| Part Number | Product Description |
| 28PS2Q0015T-YL6Q | 1.5M LC/UPC OS1 OS2 Simplex Single-Mode Pigtail |
