1RU Universal Fibre Optic Fobot Tray

Product Selection Menu

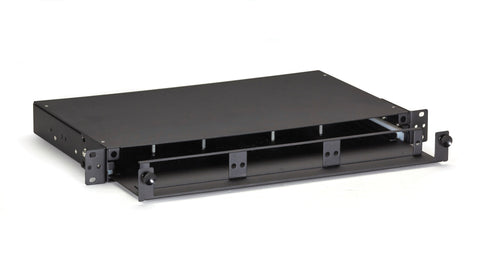

FOBOT-1RU-U | 1RU Universal Sliding Fobot Kit with 3x Interchangeable Plates - Dueltek

Average ETA for Additional Units  Contact Us
Product Datasheet Download

This Universal Fibre Optic Panel or Fobot Kit, is designed to meet and exceed industry standards. Featuring all the components you need to complete a fully integrated fibre optic installation. Simply add the type of couplers and pigtails suitable for your project and you're good to go... Everything else is included in the kit.

Specifications

  • 1RU Universal Sliding Fobot with 3x Interchangeable Plates Slots
  • Dimensions (mm): 310(d) x 483(w) x 44.50(h)
  • Rack Units: 1RU
  • Rack Mounting: 19-Inch Standard Width
  • 6M Captive Cage Nuts/Srews
  • 24-Way Splice Tray
  • 100x 40mm x 1.2mm Splice protectors
  • 3x 6-insert LC Duplex/SC Simplex Plates
  • 2x Blank Plates
  • 3x 6-Insert LC Quad/SC Duplex Plates

Mechanical & Electrical Properties:

  • Frame: SPCC Steel
  • Color: Black
  • Front cover: N/A
  • Operating temperature: -10 to +63C at 5-85% RH(non condensing)
  • Storage temperature: -40 to +70C
  • Plastic parts: High-impact flame retardant materials
  • Port identification: Numbers and designated space printed on the cover

Compliance Standards:

  • Relevant sections of ANSI/TIA/EIA-604 (FOCIS)
  • Relevant sections of IEC 60874
  • Relevant sections of IEC 61753
  • Relevant sections of IEC 61754
  • Plastic parts: UL94 V-0 flame test
  • EU Directive 2011/65/EU (RoHS-2)
Part Number Product Description
FOBOT-1RU-U 1RU Universal Sliding Fobot Kit with 3x Interchangeable Plates
