24 Port 10/100Mbps Layer 2 Stackable Switch

Product Selection Menu

For stock availability and product enquiries.

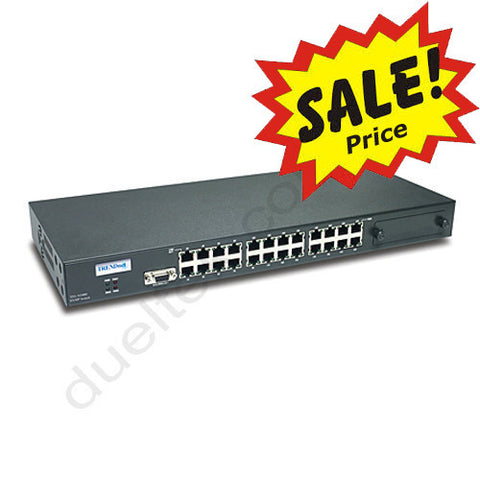

TEG-S2400i | 24 Port 10/100Mbps Layer 2 Switch with Gigabit Slot - TRENDnet Networking Products

Average ETA for Additional Units  Contact Us
Product Datasheet Download

The TEG-S2400i 24 Port Stackable SNMP switch provides foundation for a highly scalable and easily managed network. The Web/SNMP Managed Switch allows network administrators to remotely monitor and manage network performance and security. Network administrators can stack up to 16 switches and manage them with a single IP address.

The TEG-S2400i can be incorporated into high-speed backbone connectivity through Gigabit ports or mini-GBIC ports. Security and performance are optimized with advanced features including Port/Tag-based VLAN, QoS, and Trunking.

  • Stackable up to 16 Switches with Gigabit Ports
    • Single IP function supports up to 32 Switches
    • Single IP management with stackable mode (Gigabit ports only)
    • Single IP management with agent mode (Any port on the switch)
  • Manage all Uplink or Stacked Switches Locally or Remotely with a Single IP Address
    • Public IP required when managing remotely; Port 80/28019 need to be opened when running behind a Firewall/Router
  • 2410/100Mbps Auto-Negotiation Ethernet/Fast Ethernet Ports
  • 1 Gigabit Module Slot; supports the following optional Modules: 1-Port 100Base-FX, 2-Port 100Base-FX, 2-Port Copper Gigabit, 1-PortFiber Gigabit, 2-Port Fiber Gigabit, or 1-Port Copper Gigabit + 1-Port GBIC
  • Built-in 3Mb Packet Buffer and 1Mb Control Buffer
  • Provides 6K MAC, 4K VLAN and 2K Multicast Entries
  • Supports 255 Entries of Static MAC and Port Based MAC Table Display
  • Supports 802.3x Flow Control for Both Half/Full Duplex Operation
  • Supports Head-of-Line Blocking Prevention
  • Supports Broadcast Storm Filtering
  • Supports Port-Based VLAN (256 Groups), IEEE 802.1QTag-Based VLAN (PVID 1~255)
  • Supports 802.1v Protocol-Based VLAN Classification
  • Supports 802.1x Authentication and Authorization
  • Supports IP Multicast, IGMP Snooping and 802.1DSpanning Tree
  • Supports 2-Level Priority Queuing
  • Supports Port Trunking with Flexible Load Distribution Control and Fail-Over Functions
    • Max 7 Trunk groups with 4 ports per group
  • Supports Ingress Port Security Mode and By-Port Egress/Ingress Rate Control
  • Supports Source-Port-Based, Destination-Port-Based, and Source-Destination-Pair-Based Sniffer Function
  • Supports RMON Group 1, 2, 3, 9 and PING Function from the Switch
  • Store-and-Forward Switching Architecture with Non-Blocking Wire-Speed Performance
  • Configuration via Console Port (serial cable included), SNMP (v1.0, MIB II), TELNET, and Web Browser
  • Upgradeable Firmware via Browser with TFTP Program
  • Standard19” (1U) Rack Mount Size (kit included)
          Part Number Product Description
          TEG-S2400i 24 Port 10/100Mbps Layer 2 Switch with Gigabit Slot
