The TRENDnet TEW-826DAP high performance AC2200 Tri-Band PoE+ Indoor Wireless Access Point features three concurrent WiFi bands to maximize device networking speeds: two separate high performance 802.11ac networks (5GHz1: 867Mbps / 5GHz2: 867Mbps), and a 400Mbps Wireless N network. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the WiFi access point when multiple devices access the network.

The WiFi access point features advanced access control, QoS, traffic management, band steering, and captive portal support. The low-profile housing design blends into most environments and includes a convenient wall / ceiling mounting plate with cable guard. The TEW-826DAP supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes.

TEW-826DAP AC2200 Tri-Band PoE+ Indoor Wireless Access Point Diagram

Featureing Tri-Band WiFi with three concurrent WiFi bands to maximize device networking speeds: two separate high performance 802.11ac networks (5GHz1: 867Mbps / 5GHz2: 867Mbps), and a 400Mbps Wireless N network. Built for Busy Environments the MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the WiFi access point when multiple devices access the network. Band steering alleviates network congestion by automatically directing wireless devices from the 2.4GHz band to the 5GHz band.



  • High performance AC2200 PoE+ WiFi access point
  • Wireless AC wave 2 MU-MIMO technology boosts performance in a busy environment
  • Three concurrent WiFi bands maximize device networking speeds
  • AC2200 Tri-Band: 867Mbps (5GHz1) + 867Mbps (5GHz2) + 400Mbps (2.4GHz) bands
  • Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
  • 1 x Gigabit PoE+ LAN port, 1 x Gigabit LAN port
  • Low-profile housing blends into most environments

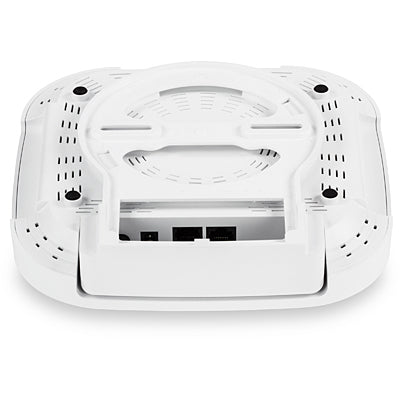

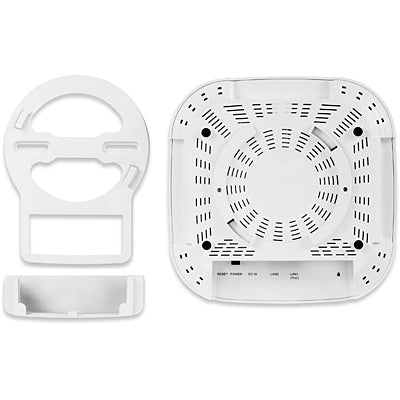

  • Includes wall / ceiling mounting plate with cable guard
  • Captive portal for hotspot applications
  • Compatible with TRENDnet’s TEW-WLC100 and TEW-WLC100P wireless controllers
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 400Mbps @ 256QAM)
  • IEEE 802.11ac Wave 2 (5GHz1: up to 867Mbps, 5GHz2: up to 867Mbps @ 256QAM)

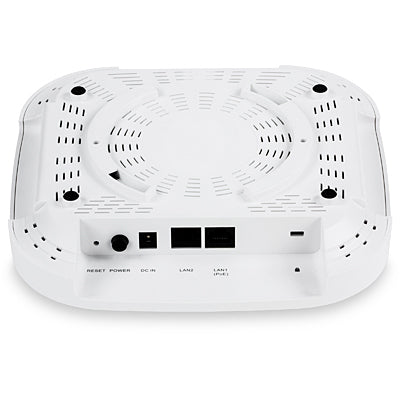

Hardware Interface
  • 1 x PoE+ Gigabit LAN port (power input)
  • 1 x Gigabit LAN port
  • Power port (optional non-PoE installation)
  • LED indicators
  • Mounting plate and cable guard
  • On/Off power button
  • Reset button
Features
  • 802.11ac MU-MIMO Wave 2 support
  • IP30 rated housing (with mounting plate and cable guard installed)
  • Concurrent Tri-Band
  • Band steering
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6))
  • Multi-Language interface, English, French, Spanish, German, Russian
  • LEDs on/off
  • External Captive Portal (Coovachilli server authentication)
  • Internal Captive Portal (Local user account authentication and customizable portal page)
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
  • Airtime Fairness
Operation Modes
  • Access Point
  • Client Bridge
  • WDS AP
  • WDS Bridge
  • WDS Station
  • Repeater
Management/Monitoring
  • Web based management
  • AP software utility
  • SNMP v1/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • Telnet
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, WPA3
  • MAC filter
  • Maximum client limit
QoS
  • WMM
  • Bandwidth control per SSID or client
SSID
  • Up to 8 SSIDs per wireless band (24 total)
Frequency
  • 2.4GHz: 2.412 – 2.472GHz
  • 5GHz1: 5.180 – 5.320GHz
  • 5GHz2: 5.500 – 5.825GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11, ETSI: 1 – 13
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)**
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain
  • 2.4GHz: 2 x 4 dBi internal
  • 5GHz1: 2 x 4 dBi internal
  • 5Ghz2: 2 x 4 dBi internal
Wireless Output Power
  • 802.11a: FCC: 27.76 dBm (max.) / CE: 28.4 dBm (max.) / IC: 30.18 dBm (max.)
  • 802.11b: FCC: 29.22 dBm (max.) / CE: 17.82 dBm (max.) / IC: 30.79 dBm (max.)
  • 802.11g: FCC: 28.2 dBm (max.) / CE: 18.71 dBm (max.) / IC: 30.23 dBm (max.)
  • 802.11n (2.4GHz): FCC: 28.56 dBm (max.) / CE: 18.79 dBm (max.) / IC: 30.41 dBm (max.)
  • 802.11n (5GHz): FCC: 28.74 dBm (max.) / CE: 28.74 dBm (max.) / IC: 30.37 dBm (max.)
  • 802.11ac: FCC: 27.45 dBm (max.) / CE: 28.74 dBm (max.) / IC: 29.55 dBm (max.)
Receiving Sensitivity
  • 802.11a: -70 dBm (typical) @ 54 Mbps
  • 802.11b: -85 dBm (typical) @ 11 Mbps
  • 802.11g: -72 dBm (typical) @ 54 Mbps
  • 802.11n (2.4 GHz): -67 dBm (typical) @ 400 Mbps
  • 802.11n (5 GHz): -67 dBm (typical) @ 400 Mbps
  • 802.11ac: -64 dBm (typical) @ 867 Mbps
Power
  • IEEE 802.3at Type 2 PoE PD Class 4
  • Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 2A external power adapter (optional)
  • Max. consumption: 18.96W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
  • IC
Dimensions
  • 214 x 214 x 36mm (8.4 x 8.4 x 1.4 in.)
Weight
  • 684g (1.51 lbs.)
Warranty:
  • 3 year



Speed and Distance References
Please note that the following information concerning potential connection distances and speeds are for reference only. They are referenced from clear line of sight installations with no other potential sources of signal degradation. Every installation environment is unique. TRENDnet is not responsible for performance metrics that may vary from those referenced below.

Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. For optimal results, we recommended that you consult a professional installer for site survey, safety precautions, and proper installation.

Part Number Product Description
TEW-826AP AC2200 Tri Band PoE+ Wireless Access Point
