TEW-755AP | N300 2.4GHz PoE Access Point - TRENDnet Networking Products

Average ETA for Additional Units  Contact Us
Product Datasheet Download

The TRENDnet TEW-755AP high performance N300 PoE Access Point supports Access Point (AP), Client, Wireless Distribution System (WDS) AP, WDS Bridge, WDS Station, and Repeater modes. It generates a 300 Mbps WiFi N network and features a Gigabit PoE port. The included Windows-based software utility manages multiple TEW-755APs and reduces WiFi management/troubleshooting time. A low profile housing blends into most environments and a mounting plate eases installation.

TEW-755AP N300 PoE Wireless Access Point

Featuring centralised management, the included Windows based software utility manages multiple TEW-755APs and reduces WiFi management and troubleshooting time. Proven 300 Mbps WiFi N combined with AP, Client, WDS, and Repeater modes support multiple applications.

TEW-755AP Centralised Management Software

Quick and easy to install in remote locations, saving time and costs with Gigabit Power over Ethernet (PoE) support and a convenient mounting plate.

  • WiFi N300 PoE access point
  • Access Point, Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes
  • Included software utility aides WiFi network management
  • Gigabit PoE LAN port
  • Off-white low profile housing blends into the environment

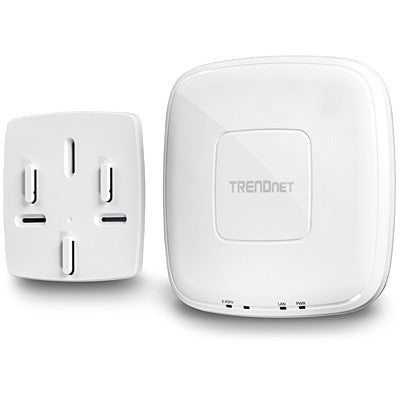

  • Mounting plate
Standards
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)

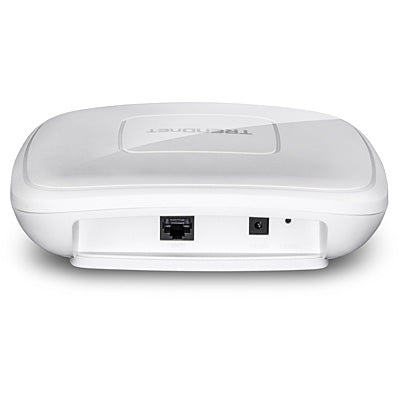

Hardware Interface
  • 1 x PoE Gigabit LAN port
  • Power port (optional non-PoE installation)
  • Reset button
  • LED indicators
  • Mounting plate
Special Features
  • IP30 rated housing (with mounting plate installed)
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)
  • Multi-Language interface, English, French, Spanish, German, Russian
  • LEDs on/off
  • Captive Portal (External Coovachilli server authentication)
  • Internal Captive Portal (Local user account authentication and customizable portal page)
  • 802.11k roaming assistance support
  • RSSI Scanner (Client signal strength and tolerance)
  • Airtime Fairness
Operation Modes
  • Access Point
  • Client
  • WDS AP
  • WDS Bridge
  • WDS Station
  • Repeater
Management/Monitoring
  • Web-based management
  • Software utility
  • SNMP v1/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • CLI
Utility OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • MAC filter
  • Maximum client limit
QoS
  • WMM
  • Traffic shaping per SSID
SSID
  • Up to 8 SSIDs
Frequency
  • 2.4 GHz: 2.412 – 2.472 GHz
Wireless Channels
  • 2.4 GHz: FCC: 1-11, ETSI: 1 – 13
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM for OFDM technique
  • 2.4 GHz: 2 x 4 dBi
Wireless Output Power/Receiving Sensitivity
  • 802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max.) / -83 dBm (typical) @ 11 Mbps
  • 802.11g: 19 dBm (Max.), CE: 12 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.) / -64 dBm (typical) @ 300 Mbps
Power
  • 12 V / 1 A consumption: 9.6 Watts Max.
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)
Weight
  • 402 g (14.2 oz.)
Warranty
  • 3 year limited



Speed and Distance References
Please note that the following information concerning potential connection distances and speeds are for reference only. They are referenced from clear line of sight installations with no other potential sources of signal degradation. Every installation environment is unique. TRENDnet is not responsible for performance metrics that may vary from those referenced below.

When networked to the same unit, this unit is rated for connecting over clear line-of-sight distances of up to 8 km (5 miles). Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. For optimal results, we recommended that you consult a professional installer for site survey, safety precautions, and proper installation.

Part Number Product Description
TEW-755AP N300 2.4GHz PoE Access Point
