ST-SC OM1 Duplex Patch Lead

• Tweet

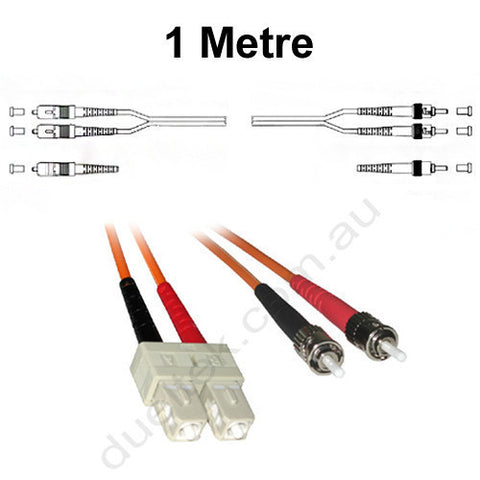

FO-STSC | ST-SC 62.5-125 OM1 Multi Mode Duplex Fibre Optic Patch Lead

	Average ETA for Additional Units	3-5 Days
	Product Datasheet	Download

High quality, multi-purpose Fibre Patch Cable for your mission-critical installation.

Highest specification OM1 laser optimised multi mode cable designed for 10Gb Ethernet (250 metres at 1Gb down to 30 metres at 10Gb), but suitable for both LED and VCSEL laser light sources. Recommended for internal connections within cabinets between fibre patch panels and switches where 62.5/125 OM1 Multi Mode cable has been used in the infrastructure.

The PVC jacket used on Dueltek fibre cables is LSZH (Low Smoke Zero Halogen). LSZH cable reduces the amount of toxic and corrosive gas emitted during combustion. This type of material is typically used in poorly ventilated areas such as aircraft or rail cars, but it is becoming a more popular choice for green installations & environmentally conscious consumers.

• RoHS Compliant
• LSZH (Low Smoke Zero Halogen) PVC jacket.
• Fibre Connectors are Machine UPC (Ultra Polished Connectors)
• 2 x ST Connectors
• 2 x SC Connectors
• UL Approved with high quality corning fibres
• Ceramic ferrules
• Typical insertion loss of less than 0.5dB
• Factory manufactured and fully tested
• Fibre cable is Multimode Duplex, core thickness is 62.5 microns, with an outside cladding of 125 microns
• OM1 rated
