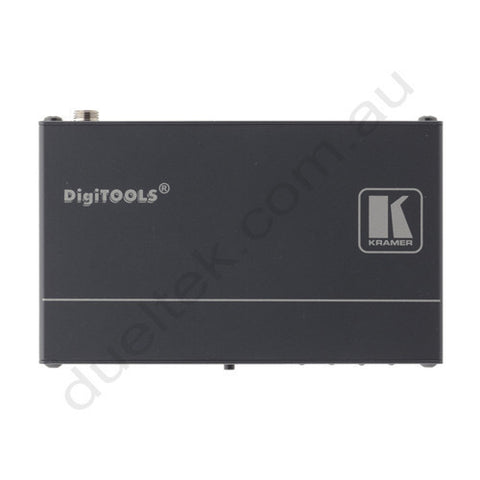

VM-2HXL | 1:2 HDCP Compliant HDMI Distribution Amplifier Splitter - Kramer Electronics

Average ETA for Additional Units  1-2 Days
Product Datasheet Download

The VM-2Hxl is a distribution amplifier for HDMI signals. The unit reclocks and equalizes the signal and distributes it to two identical outputs.

  • Max. Data Rate - 2.25Gbps.
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI 1.3a Compliant.
  • Enhanced EDID (Extended Display Identification Data) - The unit can store and recall a default EDID setting in non-volatile memory from one of the outputs allowing convenient and reliable connection to the source.
  • Kramer Equalization & re-Clocking Technology - Rebuilds the digital signal integrity to travel longer distances.
  • Active Output LED.
  • Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

Specifications:

  • INPUT: 1 HDMI connector.
  • OUTPUTS: 2 HDMI connectors.
  • BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel.
  • COMPLIANCE WITH HDMI STANDARD: Supports HDMI 1.3 and HDCP.
  • CONTROLS: EDID SETUP button, input select button.
  • INDICATOR LEDs: IN 1, IN 2, OUT 1, OUT 2, and ON LEDs.
  • POWER SOURCE: 5V DC, 910mA.
  • DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" 1.0") W, D, H.
  • WEIGHT: 0.3kg (0.67lbs) approx.
  • ACCESSORIES: Power supply, bracket installation kit.
  • OPTIONS: RK-3T 19" rack adapter.
